Glovebox made of acrylic> Gas filling: automatic flushing with pressure control, front version: removable, side version: flange, removable, control: humidity regulator with oxygen display

Product description

Do not hesitate to contact us, we will be happy to meet your individual requirements

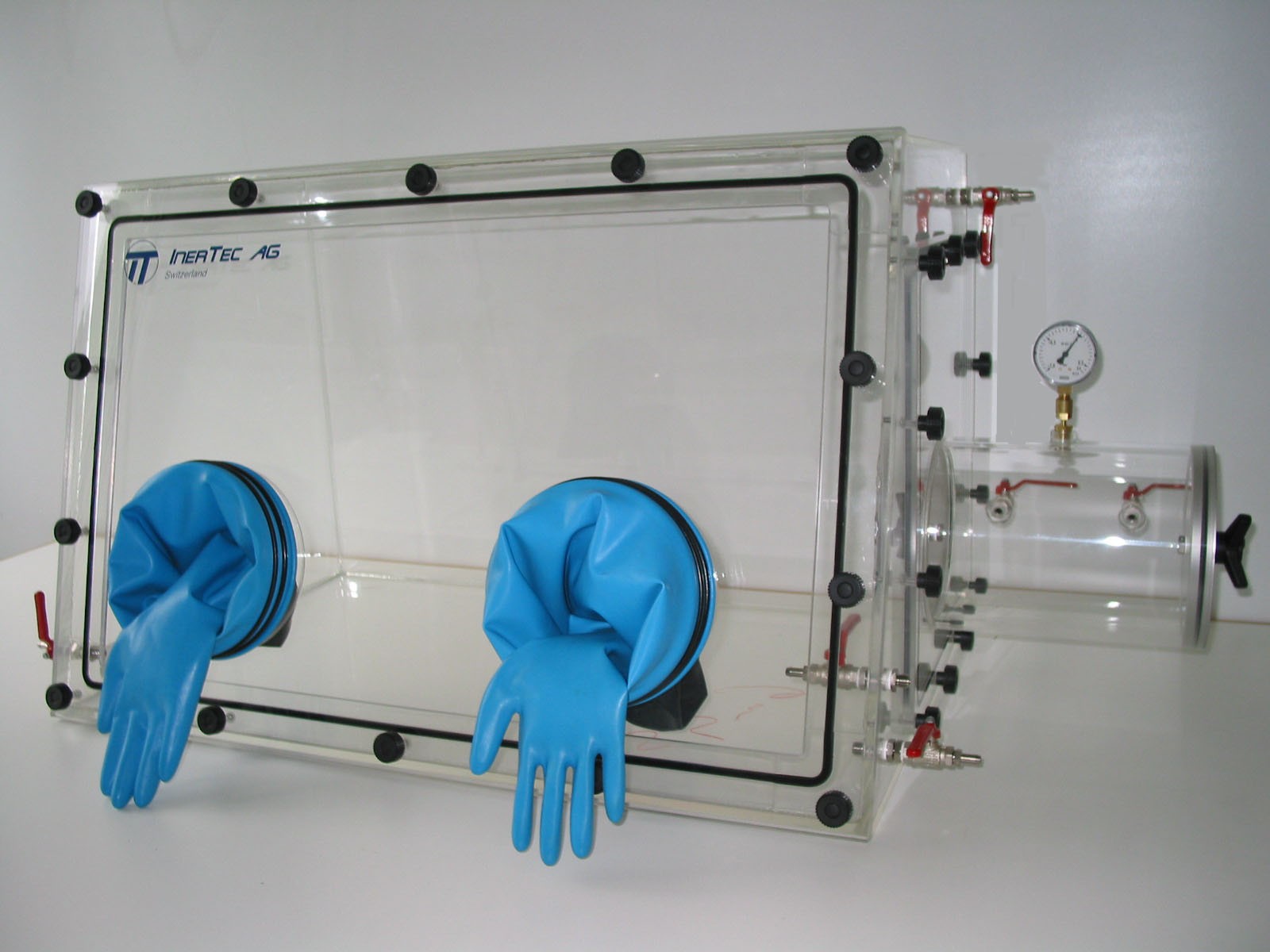

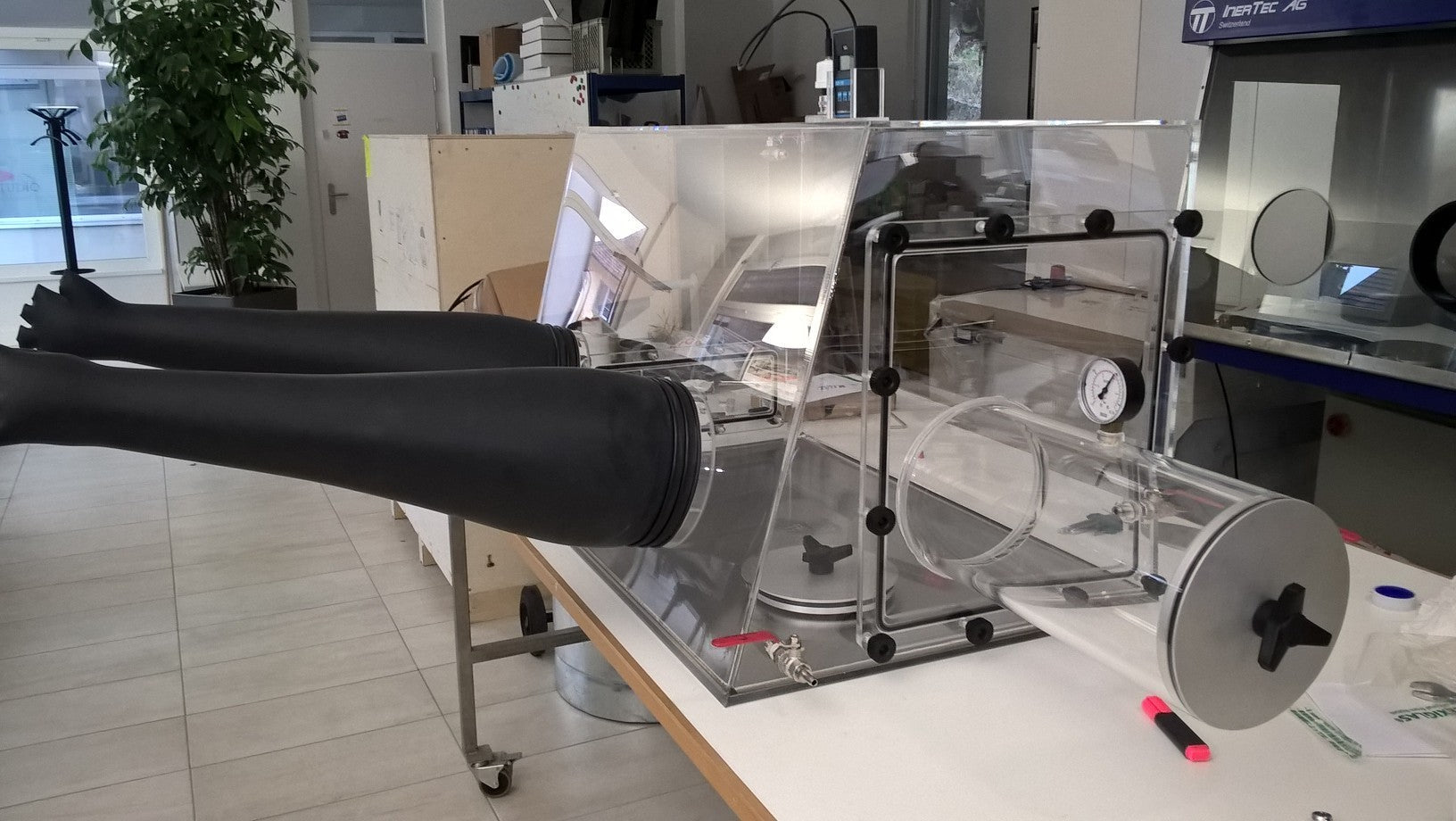

Workplace inert gas glove box system made of acrylic (PMMA).

InerTec Glove-Box System, glove box and glove box for work under N2 / or Ar atmosphere

Typical applications

Universities and R & D Centers (research and development centers), chemistry, pharmaceuticals etc.

Suitable for:

• Assembly
• Sampling
• Welding work
• Semiconductor manufacturing
• Basic research
• Lithium battery production / OLED
• General handling for all O2 and H2O sensitive materials

Function/construction

• The ITS series systems are the result of years of optimization work. Due to the consistent use of high-quality components and the proven control, the interesting price-performance ratio could be achieved.
• The structural design of the base housing made of acrylic or, for an additional charge, stainless steel allows practically unlimited expansion options.
• The front frame system with quick-release system at a defined fixed stop allows the windshield to be easily removed and reattached in just a few minutes.
• Optionally also with hinges
• The front frame seal guarantees the best values ​​in terms of tightness in the over- and under-pressure working area.
• This service-friendly concept is, among other things, to be seen as a decisive criterion compared to other systems.
• The ITA Glove Box has proven, maintenance-free and user-friendly controls. The ergonomic and space-saving design allows the Glove Box to be easily integrated into a laboratory.
• The box is designed so that it can be set up on a standard work table. All that is required for commissioning is the connections for gassing the box and the lock.
• The front unit, which is aligned at an upward angle of 15° to the rear, allows ergonomic work in both a standing and sitting position.
• Gas-tight glued housing with high transparency quality. Box floor cast with a radius all around to avoid dead spaces and for cleaning reasons.

OPTIONS / Accessories

• Gas circulation with suspended matter filter
• Gas circulation with HEPA filter and vacuum lock round
• Media plate for subsequent connections
• Stainless steel base
• O2-H2O combination measuring devices ppm range
• LED light
• Mobile stainless steel storage rack
• 1 pair of neoprene gloves
• different front sides and control variants

Certificates

• Proof of leaks
• CE compliant
